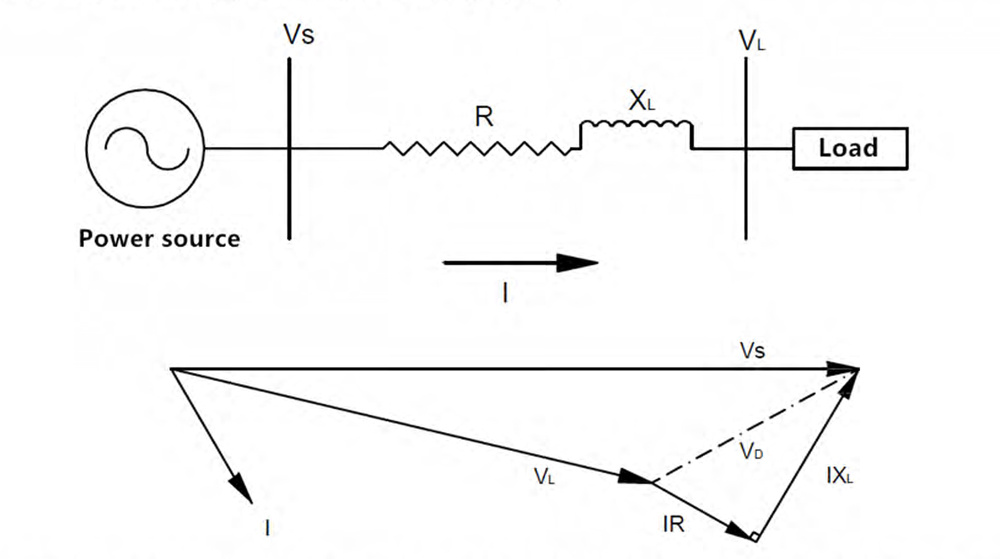

Ideally the distribution lines should to be able to keep the whole line of constant voltage, but in actual, the impedance of the distribution line will result in that the voltage of end and terminal is not same( Figure 1).

Since the line voltage can not be kept constant, when the actual voltage levels exceed the normal range of fluctuation of voltage allowed, it will seriously affect the normal use of the system and electrical equipment.

Electric power system: Low voltage will affect the power supply equipment output, reducing supply reliability, but also affect their own economic power, voltage drops particularly severe, even voltage collapse may occur, the frequency of loss and blackouts and other incidents.

Electric equipment: Voltage quality have an impact on safe and economic operation of various types of equipment such as the asynchronous motor, for example, if the voltage decreases, the voltage will reduce torque so that the slip is increased, so that the stator and rotor current significantly increases, resulting in motor temperature liter rise, possibly even burning motor; on the contrary, when the voltage is too high, due to the excitation current and iron loss greatly increased, resulting in motor overheating, efficiency is reduced.

Low voltage will affect the use of incandescent lamps. Voltage 10% lower than the rated voltage, incandescent light flux is reduced by 30% higher voltage than the rated voltage of 10%, the lamp life is reduced by half.

Low voltage will also affect the air conditioning running, cell phone charger, TV signal reception and other problems.

Power system losses: In conveying power certain time, the square of system losses and operating voltage, if the voltage decreases, the current increases and the loss, the loss will become larger system.
